Installing SENTIENT Professional Edition from AWS Marketplace

This guide describes how to install SENTIENT Professional Edition from AWS Marketplace. Using this guide you will install BYOL version of the product. Basically, you get the license directly from SENTIENT, Inc, but purchase corresponding server instances and infrastructure from AWS.

Prerequisites

Step 1. Subscribe to SENTIENT Professional Edition BYOL and Review Terms

Navigate to the SENTIENT Professional Edition BYOL product page on AWS Marketplace and click the View purchase options button to begin the subscription process.

Before completing your subscription, please carefully review all the information provided on the subscription page, including:

  • Product details – Bring Your Own License (BYOL) model means that a valid SENTIENT license must be purchased separately to activate and use the software.

  • Pricing details – The software subscription cost is $0.00. However, AWS infrastructure usage charges will apply. Depending on your geographic region, applicable taxes and other charges may apply.

  • Terms and conditions – By completing your subscription, you are confirming that you have read, understood, and agree to End User License Agreement (EULA) and the AWS Customer Agreement.


After carefully reviewing this information, click the Subscribe button to proceed with your subscription.

Step 2. Launch SENTIENT Professional Edition instance

After completing the subscription, a confirmation message will appear at the top of the page stating: You have successfully purchased SENTIENT Professional Edition BYOL.

Click the Launch your software button to proceed. This action will redirect you to the software configuration and deployment options for SENTIENT Professional Edition on AWS.

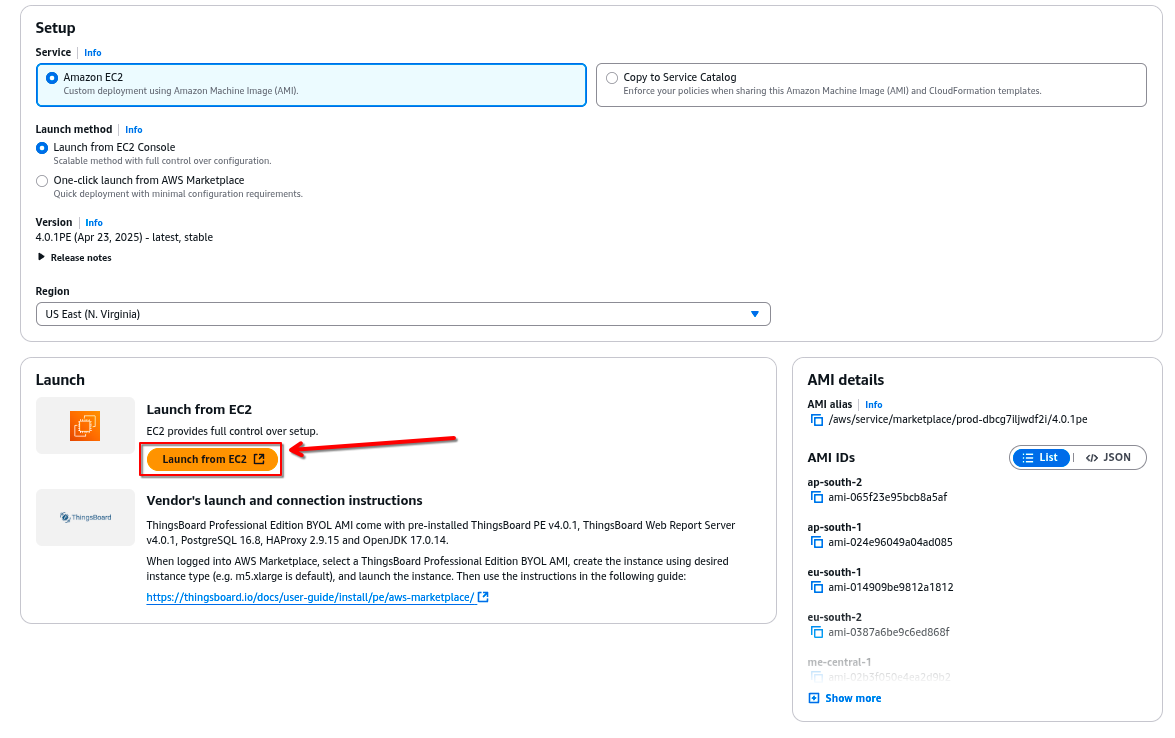

Step 2.1. Setup configuration

On the configuration page, you will see a list of options, including Service, Launch method, and Region:

  • Service - Choose a service based on how you want your product installed and configured in AWS. Each service offers different advantages and disadvantages and may have different configuration options. For this instruction we will use Amazon EC2 that provides on-demand scalability and complete control over your computing resources, allowing you to quickly adjust capacity based on demand and maintain full access to the underlying operating system.

  • Launch method - Choose how to package and deploy your application. Each method offers different deployment capabilities and management options. Your selected service type determines which delivery methods are available. In this instruction we will proceed with the Launch from EC2 Console.

  • Region - Specify the AWS region where you want to deploy SENTIENT Professional Edition.


When all options are set, click Launch from EC2 to continue.

Doc info icon

On December 31, 2025, AWS Marketplace will stop supporting the ability to copy AMIs and CloudFormation templates to Service Catalog. You can continue to deploy AMIs and CloudFormation templates through the AWS Marketplace website or EC2 console. For more information, refer to AMI-based products in AWS Marketplace.

Step 2.2. Name and AMI Information

On the Launch instance page, you will see the Name and tags section, where you can assign a name to your instance. The SENTIENT Professional Edition (BYOL) AMI details are also available here, including its name, description, and publishing information. Verify that the correct AMI is selected, and then proceed to the next step to configure your instance.

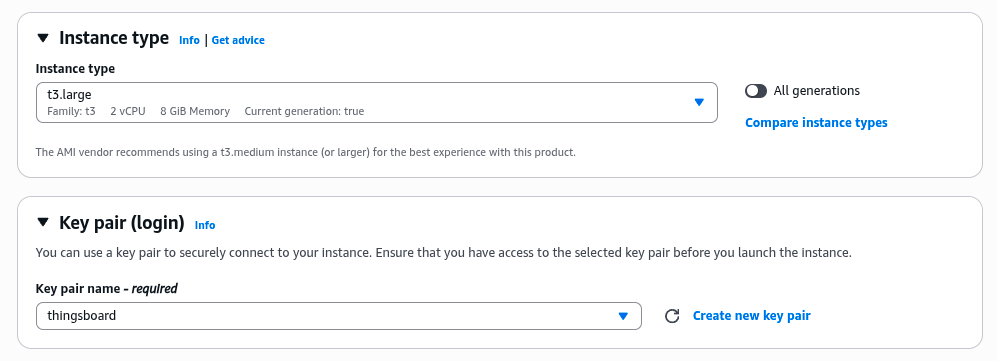

Step 2.3. Instance Type and Key Pair configuration

You can optionally change your EC2 Instance Type, VPC and Subnet. This step is usually for advanced AWS EC2 users.

Doc info icon

SENTIENT requires EC2 instance with at least 4GB of RAM. Consider adjusting the memory parameters to ensure stability. For optimal performance, we recommend an instance with at least 8GB of RAM and 2 vCPUs.


You can select existing Key Pair or create new one for your instance. Make sure you have access to the key file before you proceed. We will use the key file later in this guide.

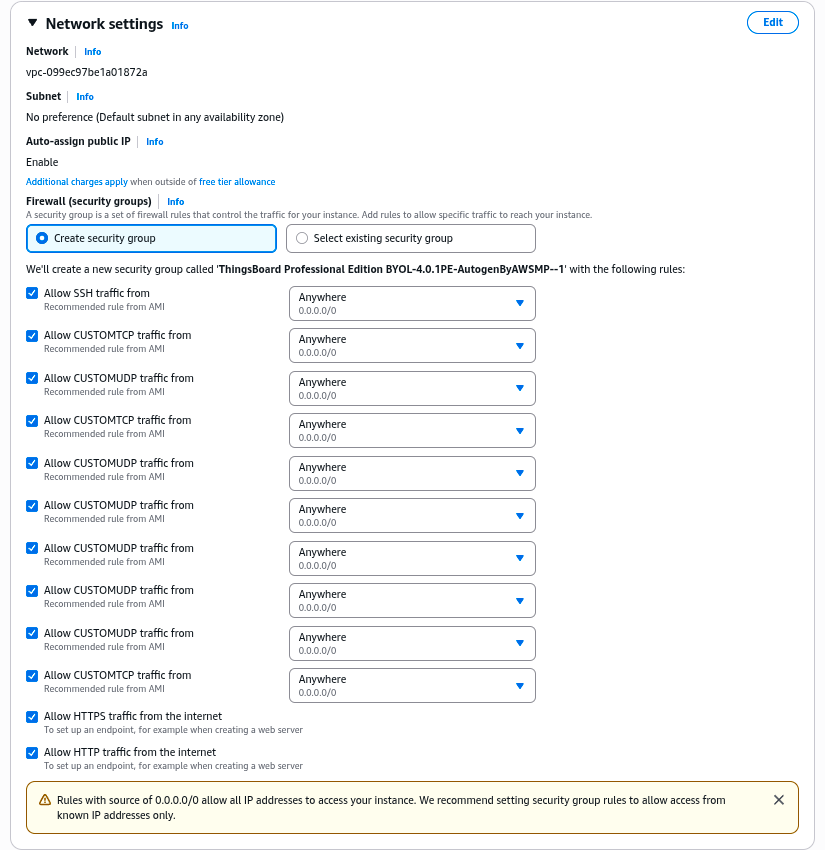

Step 2.4. Configure Security Group Settings

We recommend to use Create security group option to create predefined list of firewall rules that controls the traffic to and from your instance. If you choose Select existing security group during the instance setup, ensure that the chosen security group has inbound rules that allow traffic on the following ports required by SENTIENT:

  • 8080 (TCP) – HTTP access to the SENTIENT web interface.
  • 1883 (TCP) – MQTT protocol.
  • 8883 (TCP) – MQTT over SSL.
  • 7070 (TCP) – Edge RPC service.
  • 9090 (TCP) – Remote Integration service.
  • 5683–5688 (UDP) – CoAP and LwM2M protocols.

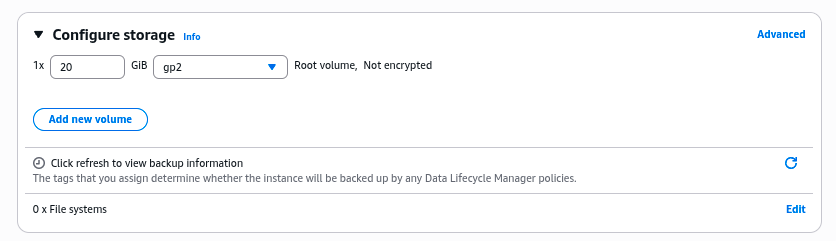

Step 2.5. Storage Configuration

Specify the storage options for the instance. For this instruction we will use the default configuration with 20 GIB of gp2 storage.


Step 2.6. Launch instance

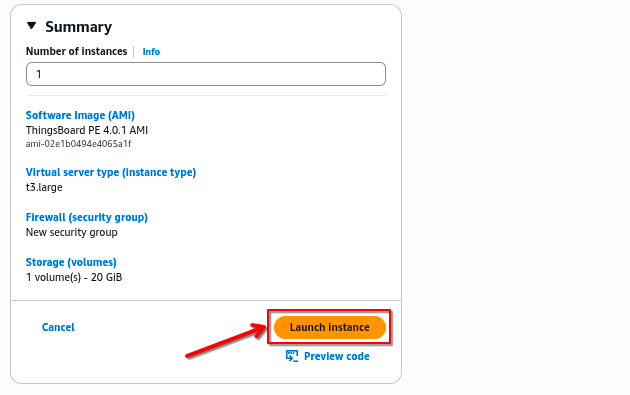

Once all configurations are completed, open the Summary window to review your settings. After verifying that everything is correct, click the Launch instance button to start the SENTIENT Professional Edition instance.

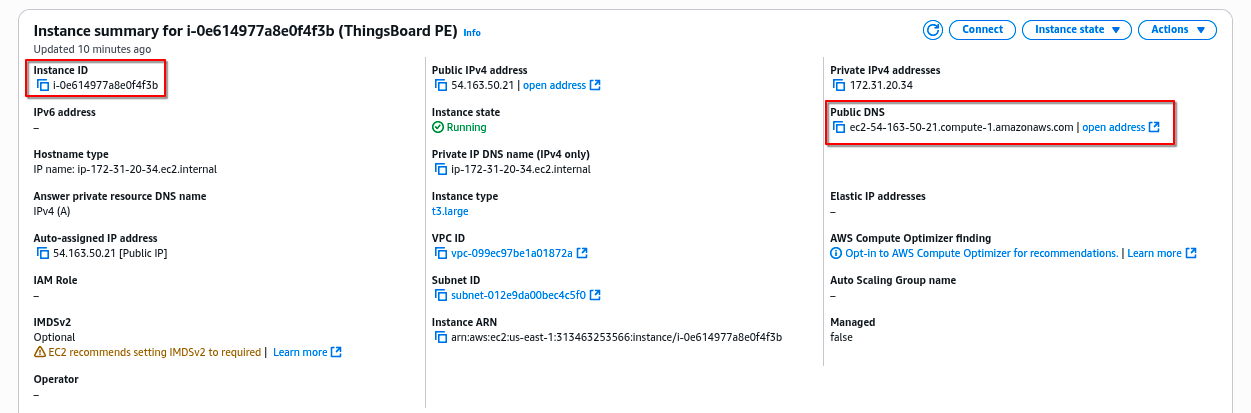

Step 2.7. Obtain your Public IP and EC2 Instance ID

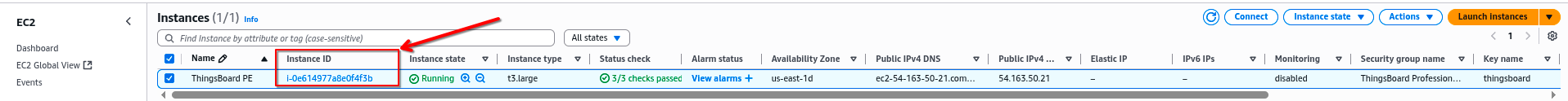

When the instance state change to the Running and all Status checks will be finished, you can go to the EC2 Instances page and click on Instance ID to see Instance Summary.


Please save your Instance ID and Public DNS name to a safe place. We will use them later in this guide.


On the image above example instance has this Public DNS name:

  • ec2-54-163-50-21.compute-1.amazonaws.com

Instance ID:

  • i-0e614977a8e0f4f3b

Step 3. Obtain your license secret

In order to activate your SENTIENT instance you will need to get the license secret. SENTIENT Licenses are managed by SENTIENT License Portal.

Please register on SENTIENT License Portal to get your license. See How-to get pay-as-you-go subscription or How-to get perpetual license for more details.

Please save your license secret to a safe place. We will use it later in this guide.

Step 4. Configure your license secret

Once you get the license secret, you should put it to the sentient configuration file.

Step 4.1. Connect to your SENTIENT Instance over SSH

Please use the official guides:

Note: You will need to use instance Public DNS name (see Step 2.7) and the key file (see Step 2.3)

Step 4.2. Put your license secret to SENTIENT configuration file

Open the file for editing using the following command:

1

sudo nano /etc/sentient/conf/sentient.conf

Locate the following configuration block:

1
2
3

# License secret obtained from SENTIENT License Portal (https://license.sentient.invenia.in)
# UNCOMMENT NEXT LINE AND PUT YOUR LICENSE SECRET:
# export TB_LICENSE_SECRET=

and put your license secret. Please don’t forget to uncomment the export statement. See example below:

1
2
3

# License secret obtained from SENTIENT License Portal (https://license.sentient.invenia.in)
# UNCOMMENT NEXT LINE AND PUT YOUR LICENSE SECRET:
export TB_LICENSE_SECRET=YOUR_LICENSE_SECRET_HERE

Step 5. Launch SENTIENT service

Execute the following command to start SENTIENT:

1

sudo service sentient start
Doc info icon

Please allow up to 120 seconds for the Web UI to start. This is applicable only for slow machines with 1-2 CPUs or 1-2 GB RAM.

Step 6. Connect to SENTIENT UI

Now you can open this link in your browser:

  • http://PUBLIC_DNS_NAME/login

In this example:

  • http://ec2-54-163-50-21.compute-1.amazonaws.com/login

Use this login to connect as system Administrator:

  • sysadmin@sentient.org

Default password for System Administrator is Instance ID (see Step 2.7). In this example:

  • i-0e614977a8e0f4f3b

Now you can proceed to the next steps.

Post-installation steps

Doc info icon

By default, AWS Marketplace instances do not assign a static public IP. This means that the public IP may change upon instance restart.
To ensure a persistent public IP, you must assign an Elastic IP to your EC2 instance. You can follow the steps in the AWS documentation.

Configure HAProxy to enable HTTPS

  • Assign valid domain name system (DNS) record to your instance external IP address.
  • Connect to your instance using SSH or PuTTY (see Step 4.1).
  • Execute the following commands:
1
2

 sudo certbot-certonly --domain smth.yourcompany.com --email support@yourcompany.com
 sudo haproxy-refresh

where smth.yourcompany.com is your DNS name from Step 2.7 and support@yourcompany.com is your email to get notifications from certbot.

FAQ

How can I enable free trial?

Customers may still use SENTIENT Cloud for that. 30 days of seamless experience and the newest features, except white-labeling, from the latest source code!

What is the Total Cost of Ownership (TCO) for my TB PE instance?

Cost Component Description
TB License fee See pricing
AWS EC2 instance price Compare instance prices at ec2instances.info
Additional EC2 costs Network traffic, disk space, and optional services (e.g., CloudWatch)

Example A: Maker Subscription (t3.medium, 20 GB disk)

Component Monthly Cost (USD)
SENTIENT Professional Edition Maker subscription fee $10.00
EC2 t3.medium (1 month) $30.368
20 GB EBS volume $2.00
Total ≈ $42.40

Example B: Prototype Subscription (m5.large, 100 GB disk)

Component Monthly Cost (USD)
SENTIENT Professional Edition Prototype subscription fee $99.00
EC2 m5.large (1 month) $70.08
100 GB EBS volume $10.00
Total ≈$179.00

How to enable HTTPS?

See Post-installation steps.

How do I configure my TB PE instance?

See official documentation page for more details.

How do I get software updates for my TB PE instance?

You will receive an email notification about new software versions once it becomes available. This email notification will contain a link to official documentation page with the upgrade instructions.

How do I backup my database?

You can follow backup instructions available with upgrade instructions. For additional guidance, you can also refer to the official PostgreSQL backup documentation.

How do I upgrade my instance type?

To upgrade your EC2 instance type, follow these steps:

  1. Stop the SENTIENT Service

    Before changing the instance type, stop the SENTIENT service to ensure a clean shutdown:

1

sudo service sentient stop

  1. Stop the EC2 Instance

    Go to the AWS EC2 Console, select your instance, and stop it:

    • Navigate to EC2 Dashboard
    • Select the instance you want to upgrade
    • Click Instance state → Stop instance

  2. Change the Instance Type

    Once the instance is stopped, update its type:

    • In the EC2 Console, go to Actions → Instance settings → Change instance type
    • Select the desired instance type
    • Click Change

  3. Start the Instance

Where is my SENTIENT instance logs?

SENTIENT logs are stored by this path:

1

/var/log/sentient

For more details on managing logs and configuring log levels, refer to the Troubleshooting Guide

How do I get professional support?

Please review SENTIENT professional support plans and contact us.
