This guide will help you to install and start SENTIENT ANALYTICS using Docker on Linux or Mac OS.

Prerequisites

• Have Docker CE. You can find out how to install it here

• Have Docker Compose. You can find out how to install it here

• SENTIENT version 4.3.0 or newer. In case you have SENTIENT version 4.2.1 or older, you could connect SENTIENT ANALYTICS to SENTIENT following the next guide.
• Active SENTIENT ANALYTICS addon. To find out how to activate it, please follow the next guide.

Installation Steps

Step 1. Docker Compose setup

SENTIENT ANALYTICS can be run either in the same Docker Compose file as SENTIENT or in a separate Docker Compose file.

For small and medium installations, we recommend installing SENTIENT ANALYTICS in the same Docker Compose file as SENTIENT.

1
sudo nano docker-compose.yml

1
sudo nano docker-compose.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
services:
  sentient-analytics:
    profiles: ['sentient-analytics']
    restart: always
    image: "sentient/sentient-analytics:1.15.0.4"
    ports:
      - "8888:8888"
    environment:
      SPRING_DATASOURCE_URL: jdbc:postgresql://sentient-analytics-postgres:5432/sentient-analytics
      SPRING_DATASOURCE_USERNAME: postgres
      SPRING_DATASOURCE_PASSWORD: postgres
      SCRIPT_ENGINE_DOCKER_PROVIDER_URL: sentient-analytics-python-executor:8181
      SCRIPT_ENGINE_TIMEOUT: 30000
    volumes:
      - sentient-analytics-conf:/sentient-analytics-config-files
      - sentient-analytics-data:/data
    depends_on:
      - sentient-analytics-postgres
  sentient-analytics-python-executor:
    profiles: ['sentient-analytics']
    restart: always
    image: "sentient/sentient-analytics-python-executor:1.15.0.4"
    ports:
      - "8181:8181"
    environment:
      EXECUTOR_MANAGER: 1
      EXECUTOR_SCRIPT_ENGINE: 6
      THROTTLING_QUEUE_CAPACITY: 10
      THROTTLING_THREAD_POOL_SIZE: 6
      NETWORK_BUFFER_SIZE: 5242880
    volumes:
      - sentient-analytics-python-executor-conf:/python-executor-config-files
      - sentient-analytics-python-executor-data:/data
  sentient-analytics-postgres:
    profiles: ['sentient-analytics']
    restart: always
    image: "postgres:16"
    ports:
      - "5432:5432"
    environment:
      POSTGRES_DB: sentient-analytics
      POSTGRES_PASSWORD: postgres
    volumes:
      - sentient-analytics-postgres-data:/var/lib/postgresql/data
volumes:
  sentient-analytics-conf:
    name: sentient-analytics-conf
    driver: local
  sentient-analytics-data:
    name: sentient-analytics-data
    driver: local
  sentient-analytics-python-executor-conf:
    name: sentient-analytics-python-executor-conf
    driver: local
  sentient-analytics-python-executor-data:
    name: sentient-analytics-python-executor-data
    driver: local
  sentient-analytics-postgres-data:
    name: sentient-analytics-postgres-data
    driver: local

Step 2. Start SENTIENT ANALYTICS service

Set the terminal in the directory which contains the docker-compose.yml file and execute the following commands to up this docker compose directly:

1
docker compose --profile sentient-analytics up -d && docker compose logs -f sentient-analytics

After executing this command you can open http://{your-host-ip}:8888 in your browser (for ex. http://localhost:8888). You should see SENTIENT ANALYTICS login page.

Step 3. Sync SENTIENT With SENTIENT ANALYTICS

The final step is to verify that SENTIENT is synchronized with SENTIENT ANALYTICS. To do this:

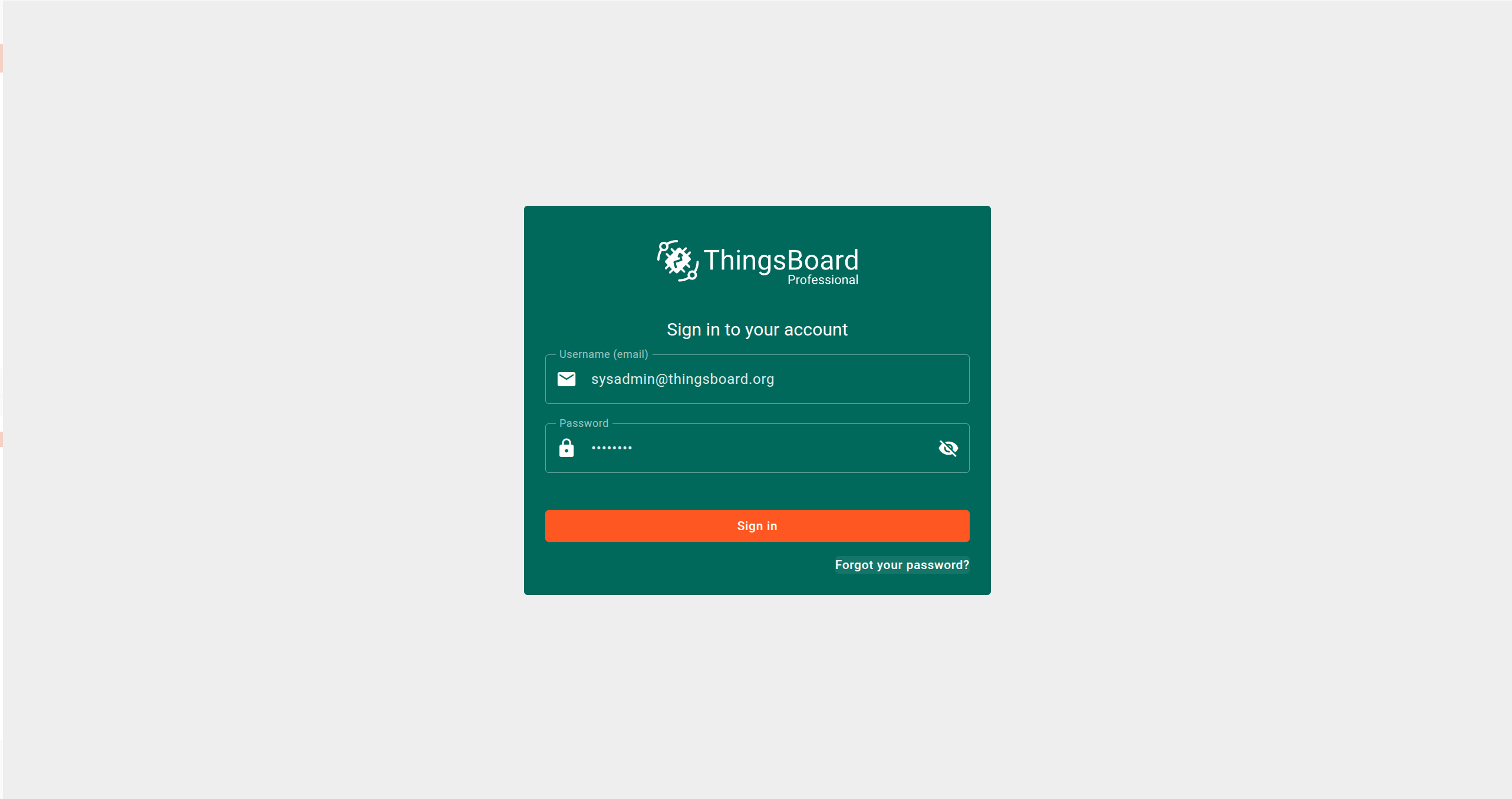

• Log in to SENTIENT as a Sysadmin.
• Open the SENTIENT ANALYTICS Settings page.

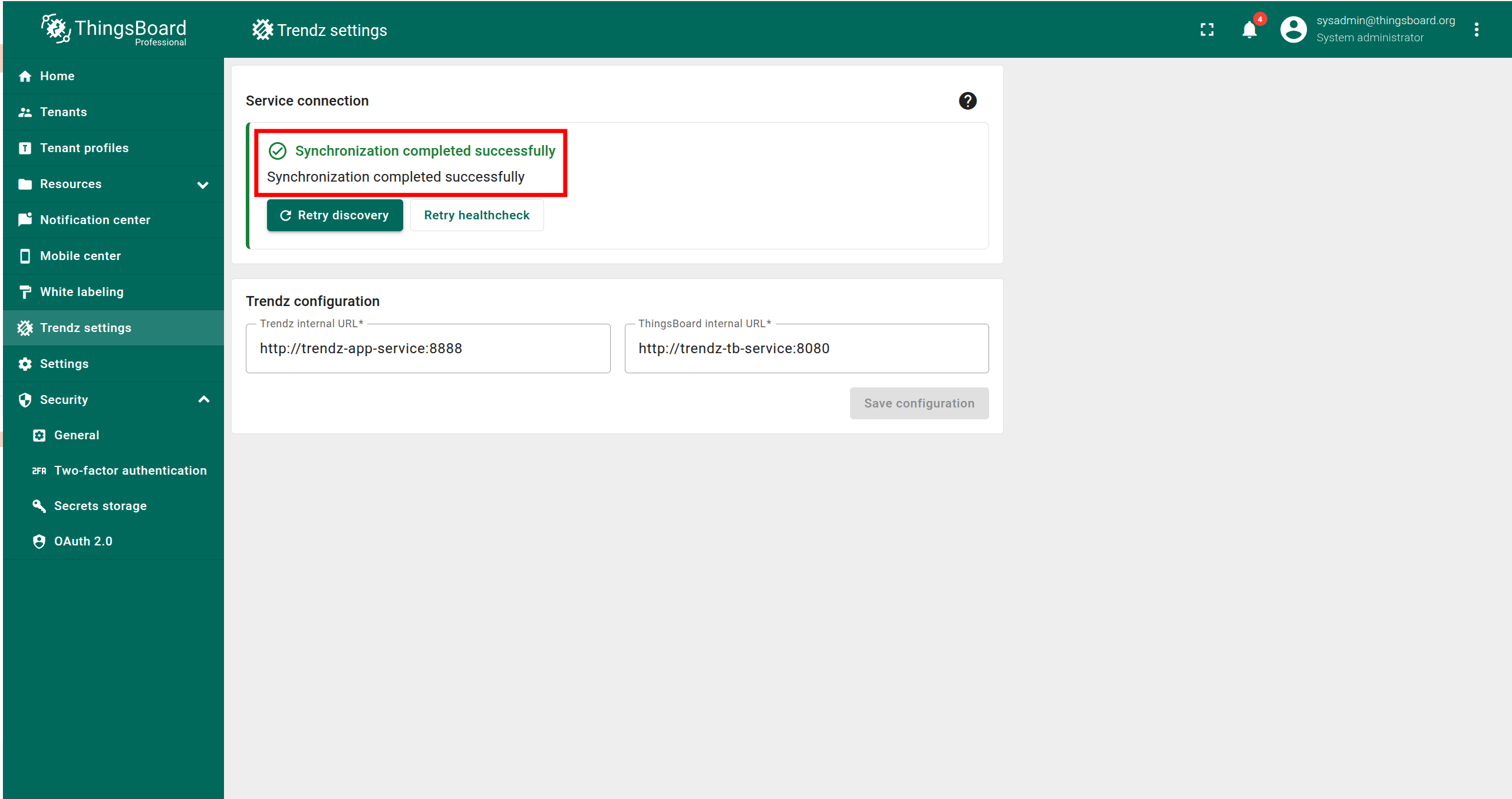

If you see the message “Synchronization completed successfully”, the synchronization has been completed automatically and no further action is required.

If you see an error message, follow these steps:

• Make sure that SENTIENT ANALYTICS is running.

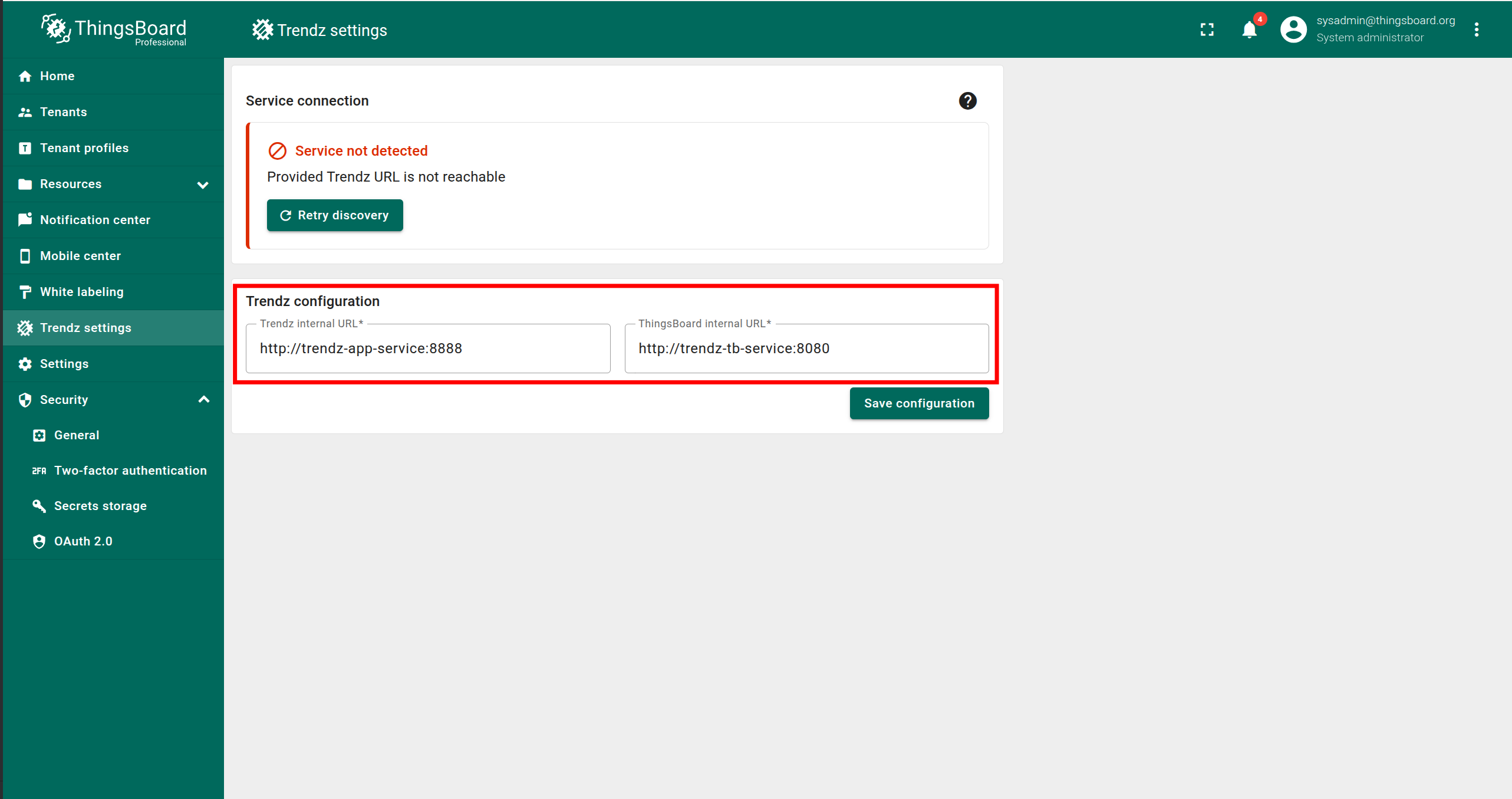

• Enter the correct SENTIENT ANALYTICS internal URL. It must be accessible from the SENTIENT service.
• Enter the correct SENTIENT internal URL. It must be accessible from the SENTIENT ANALYTICS service.

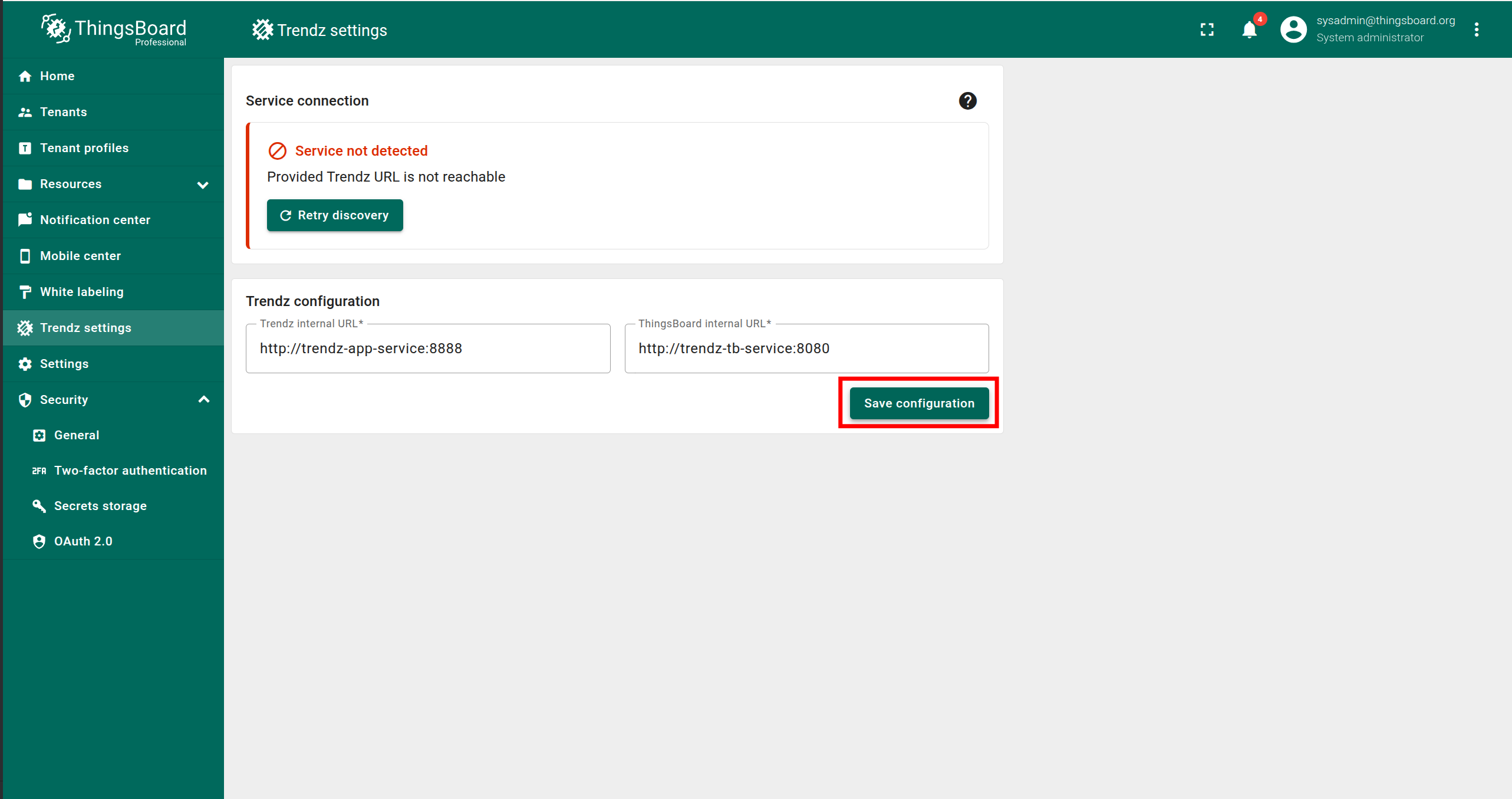

• Click Save configuration.
• Click Retry discovery.

Once the message “Synchronization completed successfully” appears, the synchronization is complete.

Authentication

You can access SENTIENT ANALYTICS UI by default at http://localhost:8888

SENTIENT ANALYTICS uses SENTIENT as an authentication service, so for first authentication, you need to use Tenant Administrator credentials from your SENTIENT.

Topology Discovery

After the first login to SENTIENT ANALYTICS, you need to discover topology to allow SENTIENT ANALYTICS to know about assets, devices, their profiles and relations:

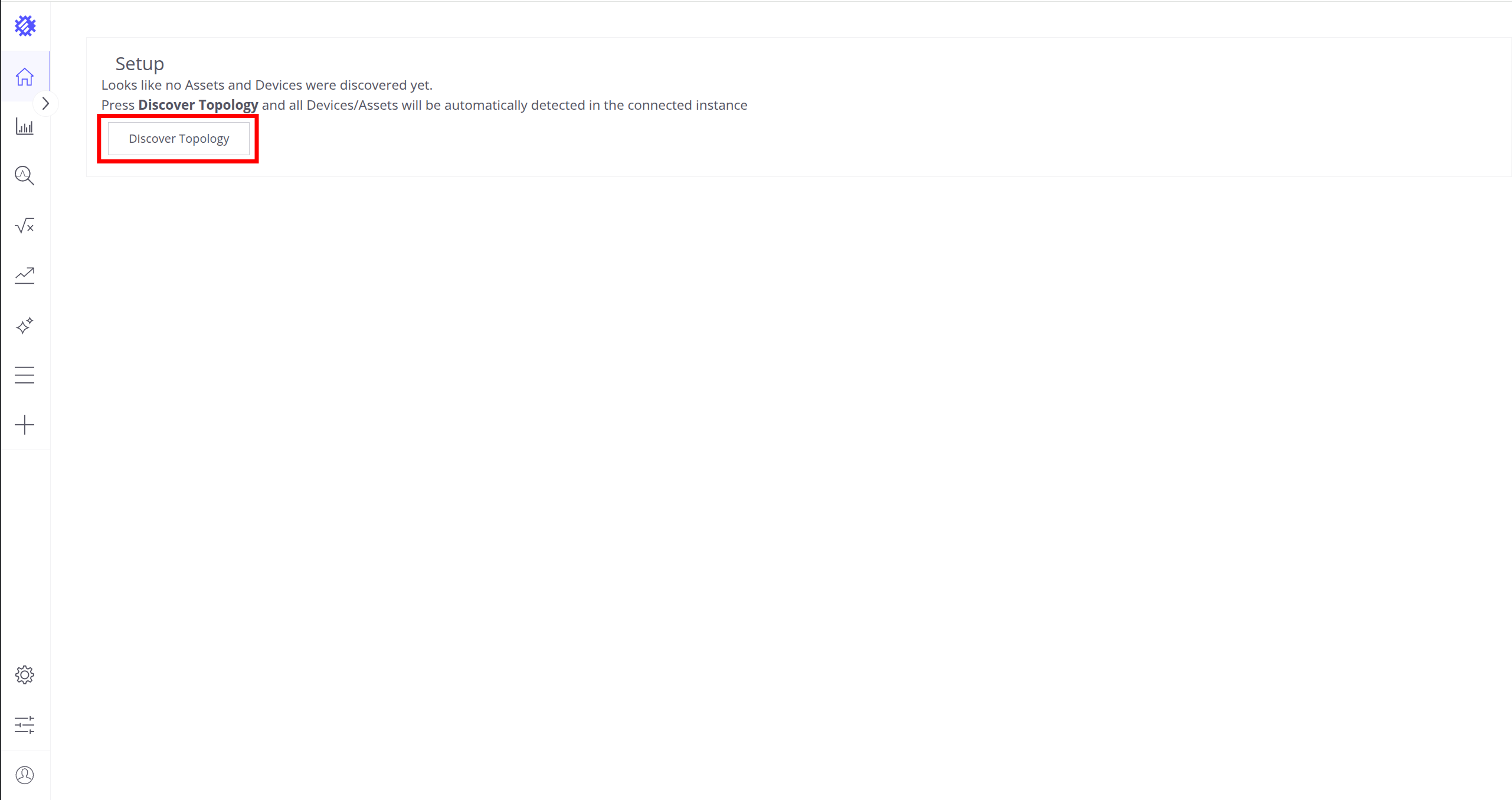

• Click the Discover Topology button to start topology discovery process.
• Wait until your topology will be discovered.

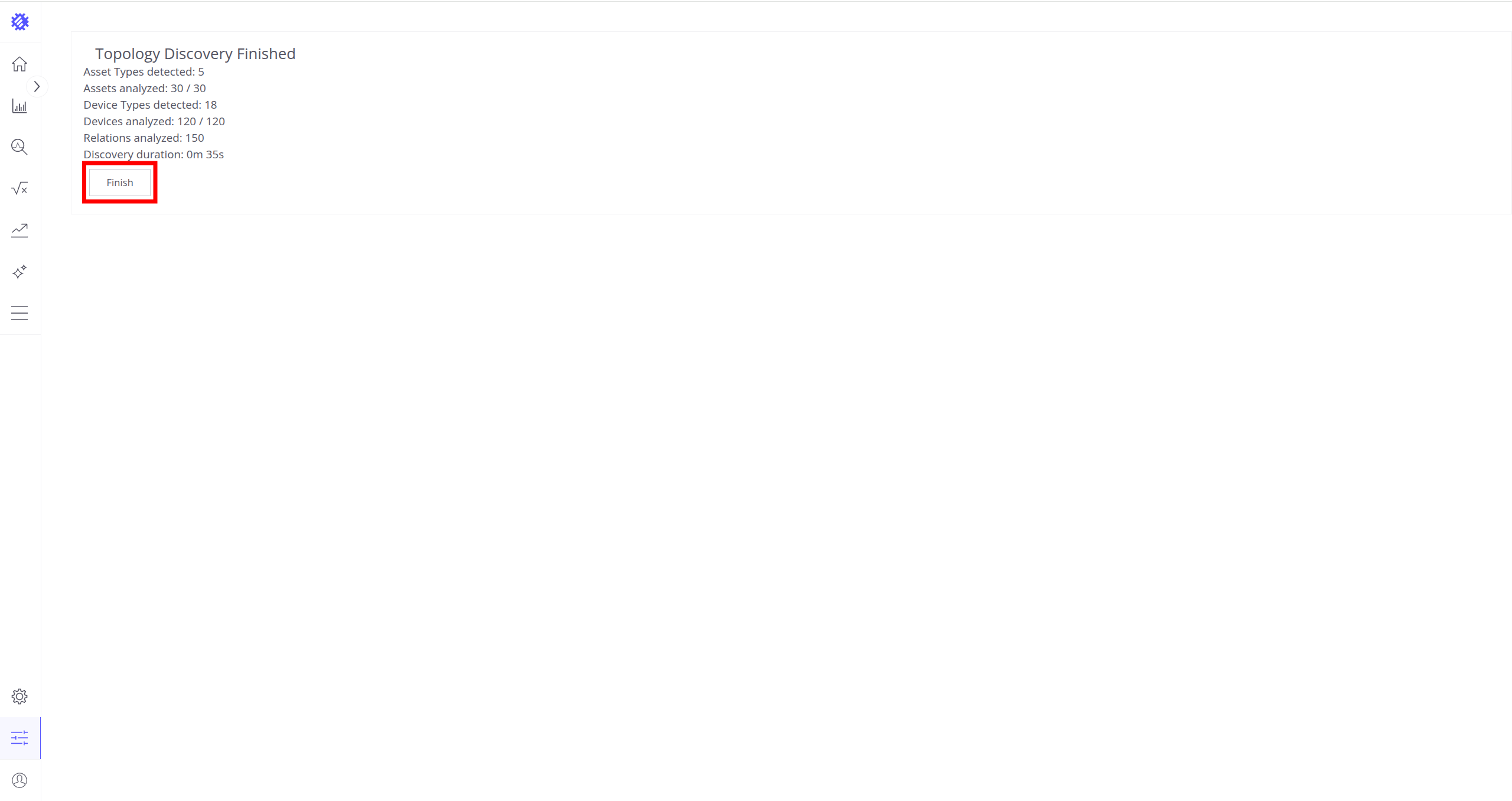

• Click the Finish button to close topology discovery page and unlock the main SENTIENT ANALYTICS functionality.

You could read more about how SENTIENT ANALYTICS uses this topology here.

Detaching, stop and start commands

You can detach from session terminal using Ctrl-p Ctrl-q key sequence - the container will keep running in the background.

In case of any issues, you can examine service logs for errors. For example, to see SENTIENT ANALYTICS container logs, execute the following command:

1
docker compose logs -f sentient-analytics

To stop the container:

1
docker compose stop sentient-analytics

To start the container:

1
docker compose start sentient-analytics

Upgrade SENTIENT ANALYTICS Service

Note, that you can upgrade SENTIENT ANALYTICS from any version to the latest at once (for example, 1.2.0 -> 1.15.0.4 ,etc).

Below is an example of how to upgrade from any SENTIENT ANALYTICS version to 1.15.0.4

• Create a dump of your database:

1
docker compose exec sentient-analytics-postgres sh -c "pg_dump -U postgres sentient-analytics > /var/lib/postgresql/data/sentient-analytics_dump"

When a new SENTIENT ANALYTICS release is available, follow these steps to update your installation without losing data:

If you are upgrading using previous version of deployment files, make sure to follow steps described in this instruction first.

1. Change the version of the sentient/sentient-analytics and sentient/sentient-analytics-python-executor in the docker-compose.yml file to the 1.15.0.4.

2. Execute the following commands:

1
2
3
4
docker pull sentient/sentient-analytics:1.15.0.4
docker compose stop sentient-analytics
docker compose run --rm -e UPGRADE_SENTIENT_ANALYTICS=true sentient-analytics
docker compose up -d

Troubleshooting

DNS issues

NOTE If you observe errors related to DNS issues, for example

1
127.0.1.1:53: cannot unmarshal DNS message

You may configure your system to use Google public DNS servers. See corresponding Linux and Mac OS instructions.
